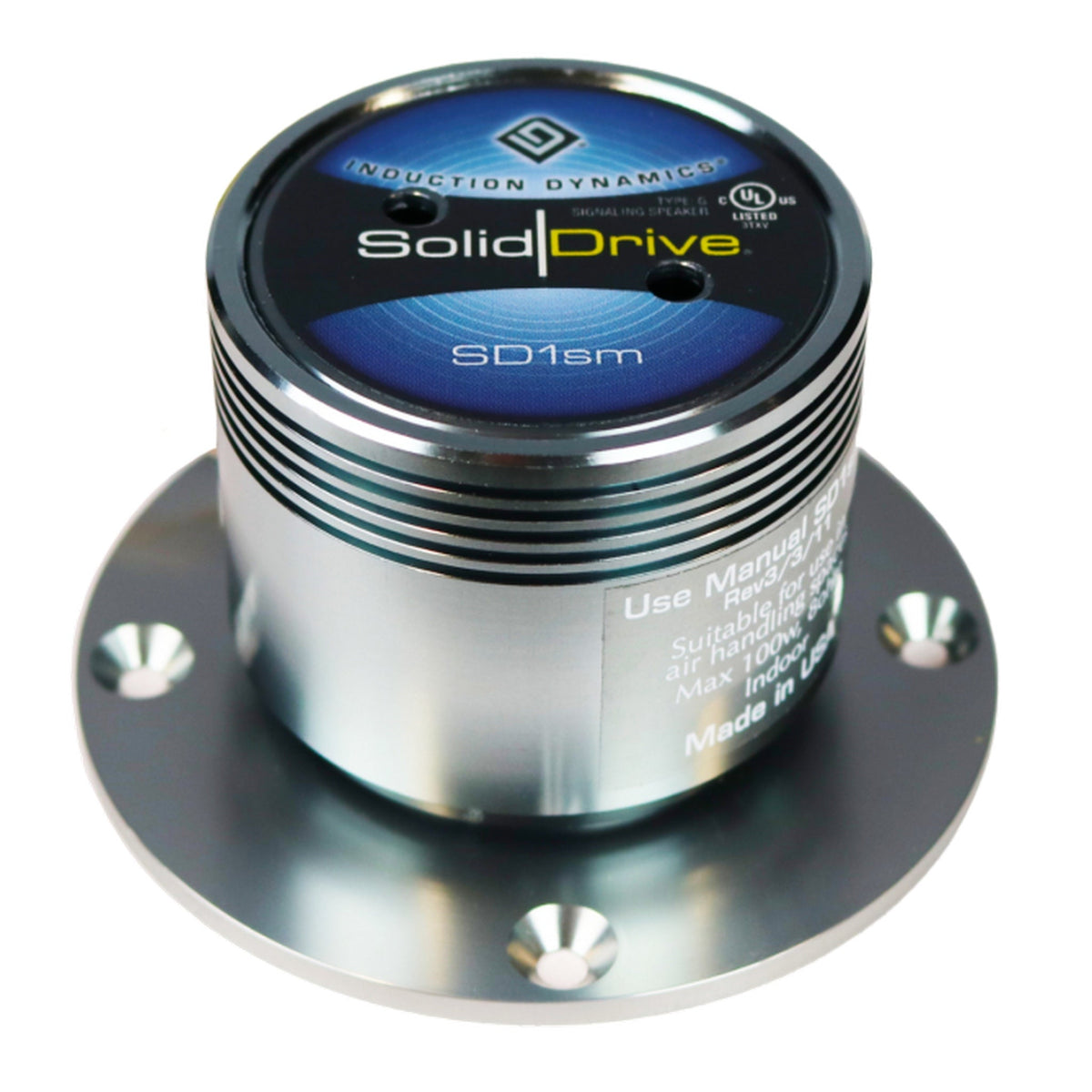

SoundTube SD-1SM Titanium Wood Surface-Mount Actuator
SoundTube SD-1SM Titanium Wood Surface-Mount Actuator The SD-1SM Titanium is a patented dual-voice coil transducer engineered to attach directly to wood and similar substrates using included countersunk wood screws. Housed in an anodized aluminum enclosure with a titanium finish, it transfers audio...
PRODUCT DETAILS
Everything you need to know.
SoundTube SD-1SM Titanium Wood Surface-Mount Actuator
The SD-1SM Titanium is a patented dual-voice coil transducer engineered to attach directly to wood and similar substrates using included countersunk wood screws. Housed in an anodized aluminum enclosure with a titanium finish, it transfers audio signals into deep, full-range vibrations.
With high-powered neodymium magnets and symmetrically opposed motors, the SD-1SM produces uniform planar-source acoustics across the entire mounting surface. Its precision mounting hardware ensures discreet installation and consistent sound dispersion from 60 Hz to 15 kHz.
Key Features
- Transducer Technology: Patent-pending dual-voice coil planar driver
- Mounting: Countersunk wood screws for direct attachment
- Enclosure: Anodized aluminum with titanium finish
- Inputs: Wire leads for hardwired connections
- Certifications: CE, RoHS, UL1480A, UL2043
- Compliance: TAA, BAA (Made in USA)
Technical Specifications
- Frequency Response (±10 dB): 60 Hz – 15 kHz (nominal, without EQ)
- Frequency Response (±3 dB): 80 Hz – 10 kHz (nominal, without EQ)
- Max. Continuous Power (RMS): 30 W
- Max. Program Power: 100 W (with 100 Hz, 12 dB/oct high-pass)
- Nominal Impedance: 8 Ω
- Minimum Impedance: 8 Ω
- Sensitivity @ 1 W/1 m: 73.5 dB
- Sensitivity @ 2.83 V/1 m: 70 – 75 dB
- Coverage Angle (±6 dB @ 2 kHz): 120°
- Enclosure Properties: Anodized aluminum
