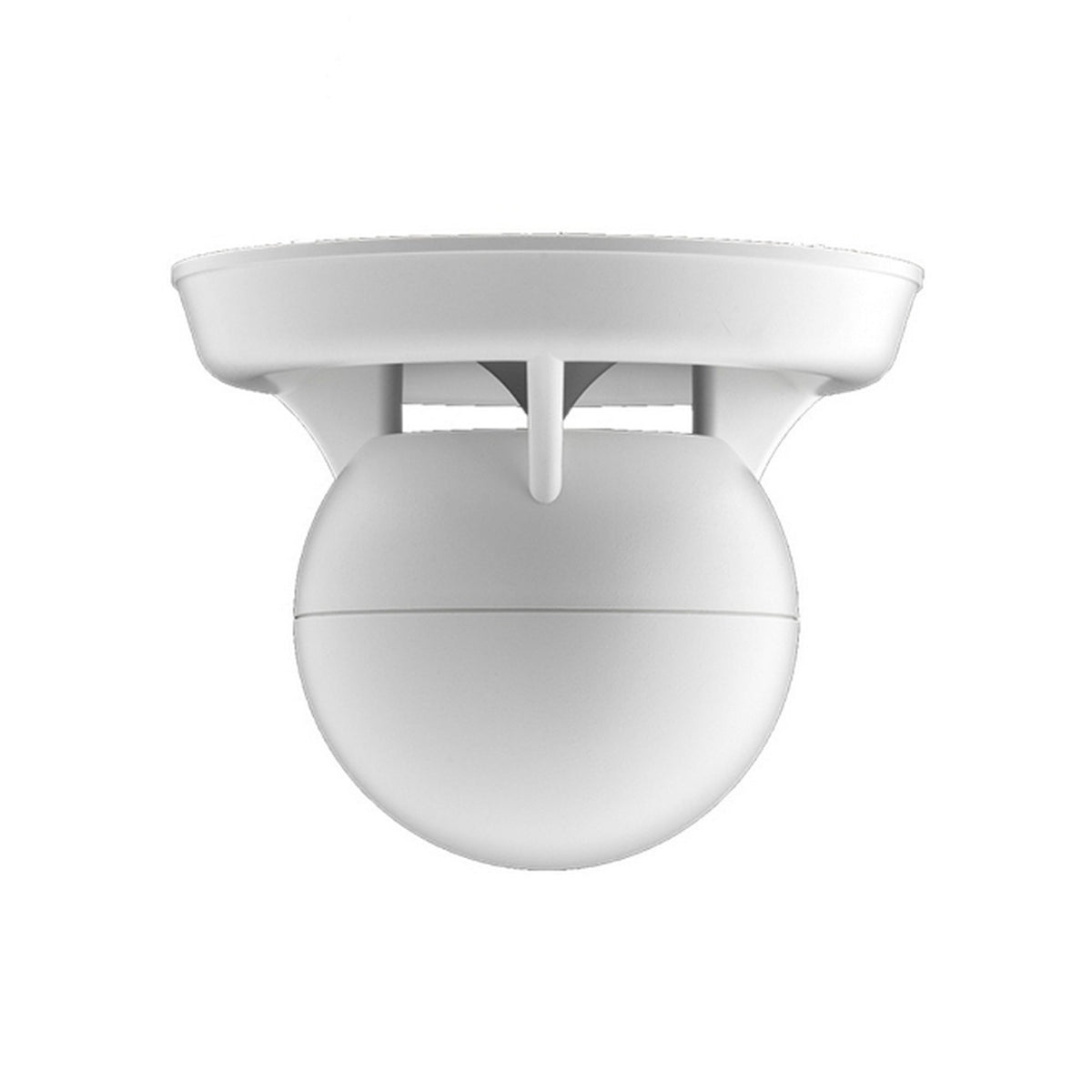

SoundTube SS-110B Paging Loudspeaker
Soundsphere SS-110B Paging Loudspeaker The SS-110B delivers seamless, omnidirectional coverage for background music and intelligible voice paging in supermarkets, warehouses, transit hubs, and educational facilities. Its sealed structural-foam polystyrene enclosure and hybrid neodymium-ferrite magnet system ensure consistent performance and long-term reliability. Featuring...
PRODUCT DETAILS
Everything you need to know.
Soundsphere SS-110B Paging Loudspeaker
The SS-110B delivers seamless, omnidirectional coverage for background music and intelligible voice paging in supermarkets, warehouses, transit hubs, and educational facilities. Its sealed structural-foam polystyrene enclosure and hybrid neodymium-ferrite magnet system ensure consistent performance and long-term reliability.
Featuring a 6.5″ treated pulp-fiber full-range driver and wire-lead tap selector for 25 V, 70.7 V, or 100 V constant-voltage integration (30 W max tap), the SS-110B achieves up to 108 dB SPL at 1 m with 93 dB sensitivity @ 1 W/1 m. Optional hanging hardware or mounting bracket simplifies installation in any ceiling or open-space application.
Key Features
- Driver: 6.5″ treated pulp-fiber, full-range
- Dispersion: 155° (±6 dB @ 2 kHz)
- Tap Selector: Wire leads for 25 V/70.7 V/100 V (30 W/30 W/30 W)
- Magnet System: Hybrid neodymium-ferrite for high sensitivity
- Enclosure: Sealed structural-foam polystyrene sphere
- Mounting: Hanging kit or bracket (optional accessory)
- Certifications: CCC, RoHS
Technical Specifications
- Frequency Response (±10 dB): 100 Hz – 20 kHz
- Max. Continuous Power (RMS): 35 W
- Max SPL @ 1 m: 108 dB
- Nominal Impedance: 4 Ω
- Sensitivity: 93 dB @ 1 W/1 m; 96 dB @ 2.83 V/1 m
- Low-Frequency Voice Coil: 1 in (25.4 mm)
- Coverage Angle: 155° (±6 dB @ 2 kHz)
