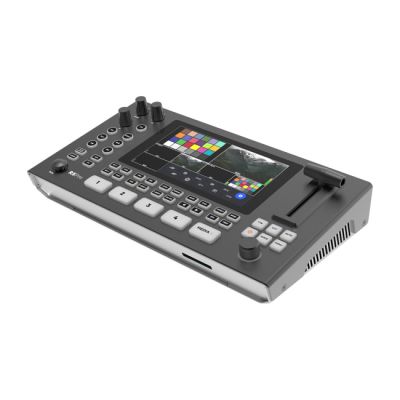

Sprolink NeoLIVE R5PRO-S 5-Input SDI+HDMI Live Streaming Switcher

Sprolink NeoLIVE R5PRO-S - Professional SDI and HDMI Live Streaming Switcher

The NeoLIVE R5PRO-S is the SDI-equipped variant of Sprolink's NeoLIVE R5PRO series, purpose-built for broadcast professionals who need flexible signal compatibility across modern and legacy camera systems. With two 3G-SDI inputs and two 4K HDMI inputs alongside a versatile fifth channel, the R5PRO-S fits seamlessly into multi-camera productions, houses of worship, live events, and corporate broadcast environments where SDI infrastructure is already in place.

The built-in 5.5-inch screen provides an always-on program and preview monitor without requiring an external display, keeping your production footprint compact. A dedicated hardware RTMP streaming engine handles dual-channel simultaneous streams over Ethernet or Wi-Fi without tying up a laptop, while direct USB recording captures a local backup simultaneously. PTZ joystick control for up to five cameras and a web-based remote control server round out the feature set for unattended or remotely managed productions.

The fifth input channel is a multifunctional port supporting USB media playback, UVC cameras, and optional NDI, SRT, or RTMP network sources, making the R5PRO-S a complete production hub in a single portable unit. Portrait and landscape orientation switching supports vertical-format streaming for social platforms without additional hardware.

Key Features

• Dual 3G-SDI Inputs: Two 3G-SDI inputs accept 1080p/1080i/720p signals from broadcast cameras, routers, and legacy SDI infrastructure, eliminating the need for outboard converters on SDI-based productions.
• Dual 4K HDMI Inputs: Two HDMI 2.0 inputs support up to 3840x2160 (4K) at standard frame rates, providing high-resolution capture from modern cameras, laptops, or presentation sources.
• Built-in 5.5-inch Monitor: The integrated 5.5in touchscreen displays program and multiview preview simultaneously, removing the need for an external confidence monitor on location or in tight spaces.
• Hardware Dual-Channel RTMP Streaming: An onboard hardware streaming engine pushes simultaneous dual RTMP streams over Ethernet (RJ-45) or Wi-Fi without relying on a connected computer, reducing production complexity and failure points.
• PTZ Camera Control and Web Remote: Control up to five PTZ cameras via IP or serial using the built-in joystick with VISCA over IP support, and manage the entire switcher remotely from any browser on the same network through the built-in web control server.

Technical Specifications

• Video Inputs: 2x HDMI 2.0 (4K), 2x 3G-SDI (1080p/1080i/720p), 1x USB 2.0 multifunctional (media/UVC/NDI/SRT/RTMP)
• Video Outputs: 1x HDMI 1.3 Program (PGM), 1x HDMI 1.3 Preview (PVW/MV), 1x USB-C UVC (video conferencing)
• Audio I/O: 2x 3.5mm audio input, 1x 3.5mm audio output, AFV and MIX audio modes, headphone monitoring
• Streaming: Dual-channel RTMP via RJ-45 Ethernet and Wi-Fi; NDI, SRT, RTMP network source input
• Display: Built-in 5.5-inch integrated screen with portrait/landscape orientation switching
• Supported Input Resolutions: 3840x2160 (4K, HDMI only), 1080p, 1080i, 720p, 576p/i, 480p/i at up to 60 fps
• Transitions: FADE, WIPE, DIP, DVE with 0.5/1.0/1.5 second duration presets
• PTZ Control: VISCA over IP, controls up to 5 PTZ cameras via built-in joystick
• Recording: Direct USB drive or external hard disk recording
• Lower Thirds: Dynamic Lower Third overlay graphics
• Power: 12 VDC, 20W consumption
• Dimensions: 261 x 144 x 49 mm (10.3 x 5.7 x 1.9 in)
• Weight: 2 kg (4.4 lb)
