Williams AV IMA-240 Forum Receiver Amplifier, Amp Only
Williams AV Forum Receiver Amplifier, Amp Only The Williams AV Forum™ Receiver Amplifier in the “Amp Only” configuration delivers a compact, reliable solution for classroom audio amplification without bundled microphones or speakers. Designed as part of Williams AV’s audio systems, this unit...
PRODUCT DETAILS
Everything you need to know.

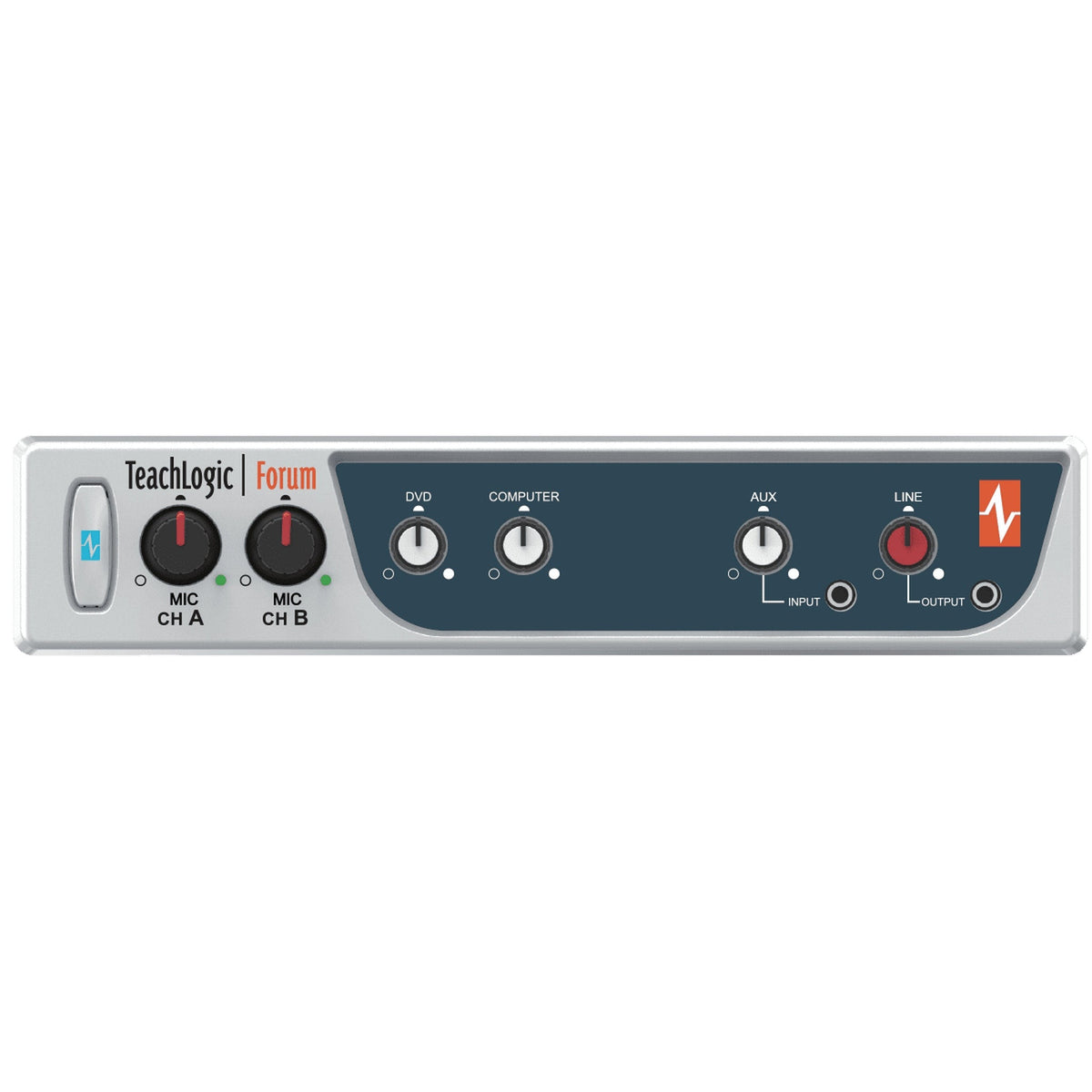

Williams AV Forum Receiver Amplifier, Amp Only
The Williams AV Forum™ Receiver Amplifier in the “Amp Only” configuration delivers a compact, reliable solution for classroom audio amplification without bundled microphones or speakers. Designed as part of Williams AV’s audio systems, this unit integrates a digital hybrid Class‑D amplifier with additional input/output features for modern hybrid learning environments.
Features include a dual-channel amplifier delivering 25W per channel (50W total RMS), multiple line-level inputs and outputs, digital feedback mechanism, power-saving sleep mode, and optional front-panel USB charging capability. It supports integration with video conferencing and lesson capture systems and offers expanded microphone coverage via additional ceiling sensors.
Key Features
- Amplifier Type: Digital hybrid Class‑D with two 25W channels (50W total RMS)
- Line Inputs: 3 mixer line-level inputs (combined with microphone inputs)
- Line Outputs: 2 line-level outputs (rear panel mixed output with gain control)
- Hybrid Learning Compatible: Front-panel input/output for synchronization with video-conference applications
- Digital Feedback Guard™: Reduces audio feedback
- Anti-Hum Circuit: Switchable computer anti-hum circuit
- Equalizer: 3-band digital EQ ±10dB
- Energy Saving: Power sleep mode to conserve energy
- Charger Connectivity: USB (5VDC) port for drop-in microphone charging
- Expandable Coverage: Supports up to 3 ceiling sensors for wider microphone reception
- Case: Lightweight aluminum cover
Technical Specifications
- Amplifier: 2×25W per channel, 50W RMS total; supports four 8Ω loudspeakers
- Line-Level Inputs: Three (mixed with mic inputs)
- Line-Level Outputs: Two (rear panel mixed output with gain control via 3.5mm connector)
- EQ: 3-band digital, ±10dB
- Feedback Control: Digital Feedback Guard™
- Anti-Hum: Switchable circuit (on/off)
- Sleep Mode: Yes, power-saving
- USB Charger Port: 5VDC for drop-in microphone charging
- Sensor Support: Up to 3 ceiling IR sensors
- Material: Lightweight aluminum cover
What's Included
- 1x Amp Unit only — no microphones, no speakers included
